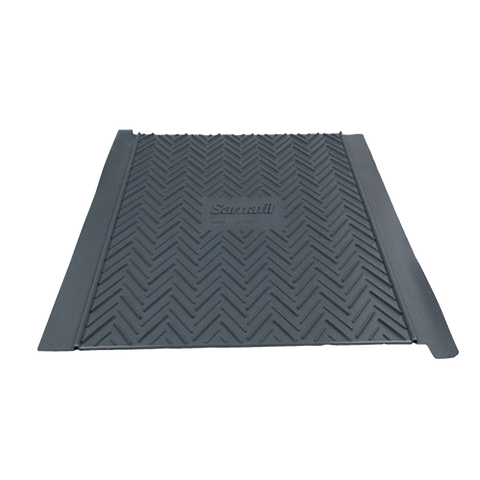

Sarnafil® Walkway Pad PVC

Injection moulded PVC Walkway Pad

Sarnafil® Walkway Pad PVC is made of high quality PVC from new Sarnafil® factory waste roofing membrane by injection moulding procedure.

  • Resistant to permanent UV irradiation
  • Outstanding slip resistant surface
  • Hot air welding without use of open flames
  • Rainwater drainage from beneath the Sarnafil® Walkway Pad PVC is provided by a network of moulded channels
  • Recyclable
Sarnafil® Walkway Pad PVC
Product Data Sheet Show all documents

Usage

Sarnafil® Walkway Pad PVC is used to provide a durable slip resisting walkway for roof maintenance or access on any Sarnafil® PVC or Sikaplan® PVC roofing system.

Advantages

  • Resistant to permanent UV irradiation
  • Outstanding slip resistant surface
  • Hot air welding without use of open flames
  • Rainwater drainage from beneath the Sarnafil® Walkway Pad PVC is provided by a network of moulded channels
  • Recyclable

Packaging

Cartons with 15 pads

Colour

Dark grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Reaction to fire according to EN 13501-1
  • Slip resistance according to BS 7976-2, PTV >50
  • Quality management system EN ISO 9001/14001
Product Information

Chemical Base

Polyvinyl chloride (PVC)

Shelf Life

Sarnafil® Walkway Pad PVC does not expire during correct storage.

Storage Conditions

Sarnafil® Walkway Pad PVC shall be stored in dry conditions.

Surface

Chevron pattern with an alternating rib height of the embossing

Length

600 mm (+3 mm / -3 mm)

Width

600 mm (+3 mm / -3 mm) without welding tabs

Thickness

9.3 mm (+0.1 mm / -0.1 mm) including 3 / 5 mm non slip chevron pattern embossing

Mass per Unit Area

2.3 kg/pad
System information

Compatibility

Sarnafil® Walkway Pad PVCs are compatible with Sarnafil® G 410 -types and Sarnafil® S 327 -types
Technical Information

Reaction to Fire

Class E

EN 13501-1

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

APPLICATION

Installation works must be carried out only by Sika instructed contractors for roofing. Please observe information given by Product Data Sheets. Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.
