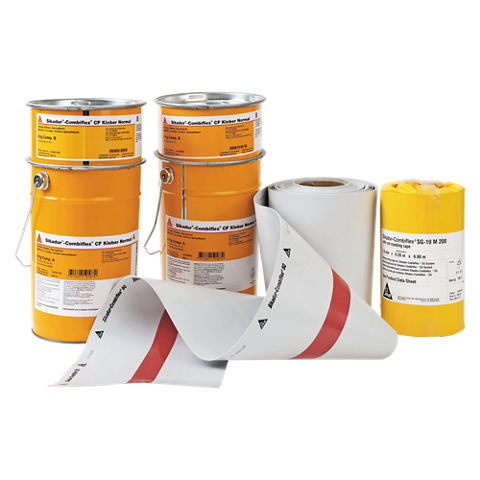

Sikadur-Combiflex® SG System
The Sikadur-Combiflex® SG System is a versatile, high performance, joint and crack sealing system for construction joints, movement (expansion) joints, connection joints or cracks. The system allows variable and high levels of movement in one or more directions, whilst maintaining a watertight seal.
The Sikadur-Combiflex® SG System consists of a waterproofing tape based on modified flexible polyolefin (FPO) with advanced adhesion properties, available in 2.0 mm thickness. Sikadur®-31 CF Normal is used for bonding the tape in different types of applications.
- Versatile system suitable for many difficult situations
- Highly flexible - high crack and joint bridging ability
- Advanced adhesion, no activation on site required
- Good chemical resistance
- Easy and simple to install
- Suitable for dry and damp concrete substrates
- Good resistance to ageing
- Resistant to UV exposure
- Resistant to root penetration
- Performs well within a wide range of temperatures
- Plasticiser-free
- Hot air weldable
- Can be used in contact with potable/drinking water
Usage
Sealing all types of joints and cracks in many different structures and applications including:- Tunnels and culverts
- Hydroelectric power plants
- Sewage treatment plants
- Basements
- Water retaining structures
- Drinking water reservoirs
- Swimming pools
- Movement joints
- Construction joints
- Pipe penetrations
- Cracks
- Building components where differential settlement is expected
Advantages
- Versatile system suitable for many difficult situations
- Highly flexible - high crack and joint bridging ability
- Advanced adhesion, no activation on site required
- Good chemical resistance
- Easy and simple to install
- Suitable for dry and damp concrete substrates
- Good resistance to ageing
- Resistant to UV exposure
- Resistant to root penetration
- Performs well within a wide range of temperatures
- Plasticiser-free
- Hot air weldable
- Can be used in contact with potable/drinking water
Packaging
1 roll of 25 m length
Available in 150 mm and 200 mm widths
Appearance
Flexible Light Grey Membrane
System Details
APPROVALS / STANDARDS
- Root Resistance CEN/TS 14416, Sikadur Combiflex® SG, SKZ, Test report No. 89643/09
- Water Regulations up to 50 °C BS6920-1:2000, Sikadur Combiflex® SG, WRAS, Approval No. 1708503
- Water pressure in joints PN-EN 1849-2, PN-EN 1850-2, Sikadur Combiflex® SG System, STUVA, Test report No. 1640-KEBE-001
- Drinking Water AS/NZS 4020:2018, Eurofins|AMS Certificate of Analysis AAI48385
System Structure
Note: The system products must only be selected from the tape and adhesive options listed.
System structure
- Modified flexible Polyolefin (FPO) waterproofing tapes
- Sikadur® epoxy adhesives
Flexible polyolefin tapes
- Sikadur Combiflex® SG-20 P
Sikadur® epoxy adhesives
- Sikadur®-31 CF Normal
Thickness
2.0 (-5%/+10%) mm
Shelf Life
36 Months from date of production
Storage Conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions. Opened and unprotected rolls must be used within 2 months. Always refer to packaging.
Tensile Strength
>16 N/mm2 (EN12311-2)
Chemical Resistance
Sikadur-Combiflex® SG System is resistant to aggressive conditions in natural ground water and soil, as well to lime water, cement water, seawater, salt solutions, domestic sewage, bitumen (according to EN 1548), bitumen emulsion coatings.
Contact Sika Technical Services for additional information.
Service Temperature
-10 °C min. / +40 °C max.
Application
Ambient Air Temperature
+5 °C min. / +40 °C max.
Substrate Temperature
+5 °C min. / +30 °C max.
Refer to the Product Data Sheet of the appropriate Sikadur adhesive.
