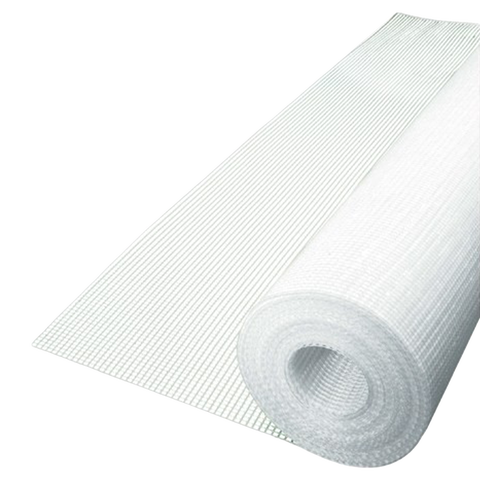

Sika® Fibre Mesh-1000

Glass fibre mesh fabric

Sika® Fibre Mesh-1000 is a glass fibre mesh fabric combined with specially designed mesh surface treatments. It can be used in a wide range of applications.

  • High mechanical strength
  • Excellent dimensional stability
  • Compatible with all major facade systems
Where to buy
Product Data Sheet Show all documents

Usage

Sika® Fibre Mesh-1000 is used as a part of the Sikalastic®-152 waterproofing system. It has a high quality synthetic coating which protects the mesh against alkaline influences from adhesives and other materials that are used.

Advantages

  • High mechanical strength
  • Excellent dimensional stability
  • Compatible with all major facade systems

Packaging

1000mm x 50m roll

Product Details

Product Information

Storage Conditions

Store in a dry room at temperatures between -10°C and +50 °C.

Dimensions

Square dimension: Warp 3.5 mm        Weft 3.8 mm

Length

50 metres

Width

1000 mm

Unit weight

Loom state fabric weight: 131 g/m²

Treated fabric weight: 160 g/m²

Treatment type: Alkaliresistant without emollient, obstructing yarn drifting


Technical Information

Tensile Resistance

Tensile strength (TS) and elongation: Minimum individual tensile strength (N/50 mm) and maximum elongation (%) when reaching minimum tensile strength is ascertained according to DIN EN ISO 13934-1 as per below.

Tensile Strength

Tensile Strength

Elongation

Disposition method

Nominal Value

Nominal Value

Average Value

Standard condition

2200 / 2200

1900 / 1900

3.8 / 3.8

Fast test (6 hours)

1700 / 1700

1250 / 1250

3.5 / 3.5

Fast test (24 hours)

50% / 50%

3 ions solution (ETAG 004)

1000 / 1000

50% / 50%
